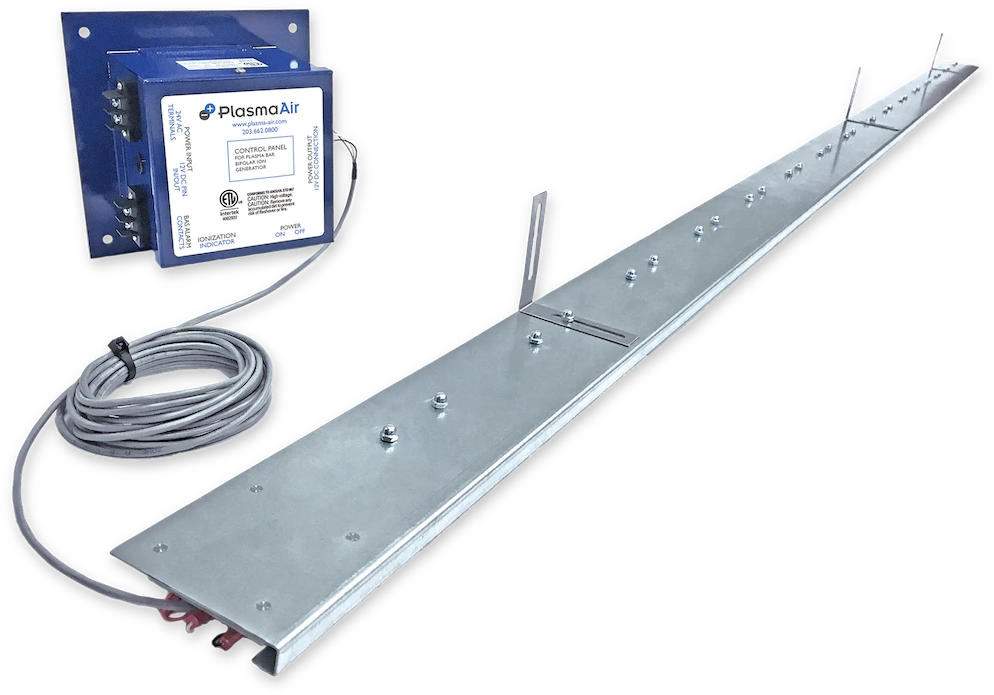

Plasma Air BAR Series
Product Description
For commercial applications, the Plasma BAR is a commercial quality, remote mounted needlepoint ion generator intended for installation in air handling units (AHU) and rooftop units (RTU).
The Plasma BAR is available in lengths of 18 inches up to 96 inches in 6 inch increments to suit a wide variety of AHU or RTU size applications.
The Plasma BAR needlepoint ionizers produce positively and negatively charged ions that reduce and neutralize harmful pollutants and odors.
Pre-assembled, they are typically installed on the upstream side of cooling coil but can be located downstream near supply fan section with a contractor provided support system. To ensure optimal performance the Plasma BAR series require minimal annual maintenance and cleaning.
Plasma Air BAR is proven to reduce or neutralize:
Product Specifications

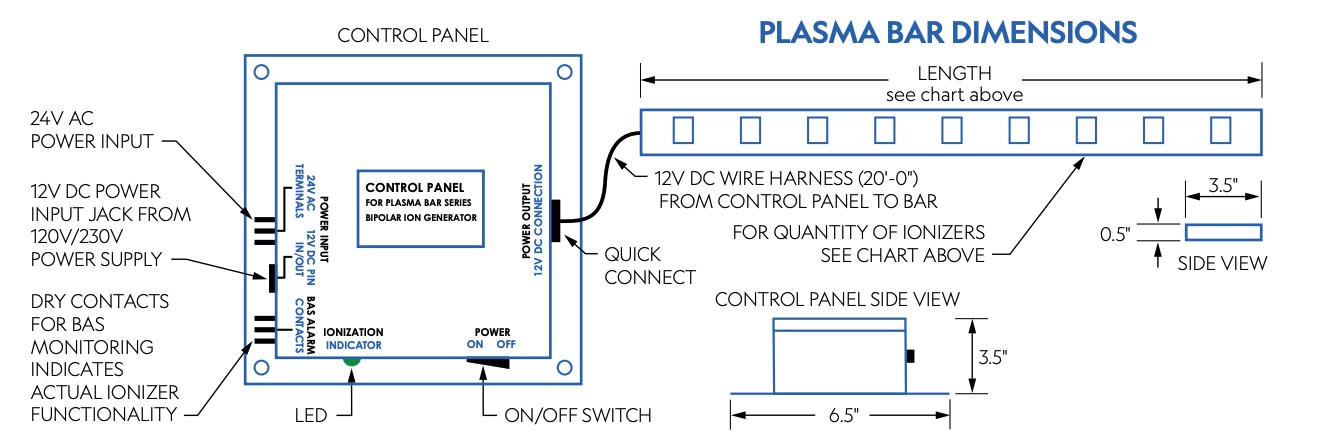

- BAR Dimensions0.5" × 3.5" × 18" - 96"
- BAR Weight1.1 lbs (18") - 6.0 lbs (96")
- Control Panel Dimensions6.5" × 6.5" × 3.5"
- Airflow CapacityUp to 20,000 CFM
- Environmental ServiceIndoor Only
- Mode of OperationRecessed, Needlepoint Type
- Direct Input Voltages12V DC or 24V AC
Document Download
Compliance and Certifications
- UL 867
- UL 2998
- UL 2043
- CSA C22.2# 187
- CARB
- ISO 16000
How to Purchase
To purchase Plasma Air products, contact our team to discuss your needs to determine the right solution and next steps.
